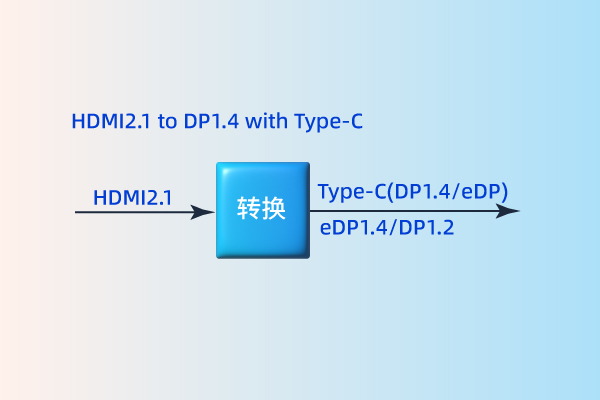

HDMI2.1 to DP1.4/Type-C
HDMI2.1 to DP1.4/Type-C

? HDMI2.1 Receiver

? Compliant with HDMI2.1, HDMI2.0b, HDMI1.4 and DVI1.0?

? Data rate up to 8Gbps?

? Support HDCP 1.4/2.3

? Support up to 8K@60Hz DSC pass-through?

? DP1.4a/eDP1.5 Transmitter

? Compliant with DisplayPort specification 1.4a for 1.62Gbps, 2.7Gbps, 5.4Gbps, 8.1Gbps

? Compliant Embedded DisplayPort specification version 1.5?

? Support DisplayPort 1/2/4 lanes ? Support HDCP 1.3/2.3

? USB Type-C?

? Compliant with VESA DisplayPort alt mode on USB Type-C standard 1.0

? DP alt mode only support pin assignment C and E?

? Compliant with USB power delivery specification 3.0

? Compliant with USB Type-C cable and connector specification 1.3

? Built-in dual CC logic and PD controller for charger and normal communication

? Data roles supported: DFP?

? Power Roles Supported: source, sink and DRP
